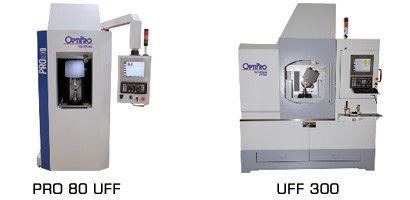

Optipro products Polishing Machines for Aspheric & Freeform – UFF Series
SpecificationsPRO 80 UFFUFF 300UFF 500
Workpiece
Optimal Diameter Range
Max. Plano Diameter Capability
Max. Weight

10 – 80mm(.39” – 3.14”)
100mm(3.9”)
15kg (33lbs.)

10 – 300mm(.39” – 11.8”)
300mm(11.8”)
23kg (51lbs)

25 – 500mm(.98” – 19.7”)
500mm(19.7”)
170kg (374.8lbs.)
Work Spindle
Spindle Speed
Hydro-Expansion
Vacuum Chuck
C-Axis Position and Hold

0 – 1,500rpm
Standard
Standard
Standard

0 – 500rpm
Standard
Standard
Standard

0 – 200rpm
Standard
Standard
Standard
Travels
X – Axis Travel
Y – Axis Travel
Z – Axis Travel
B – Axis Travel
C – Axis Travel

250mm(9.8”)
6mm(0.24”)
140mm(5.5”)
-60° to 60°
0° to 360°

500mm(19.7”)
400mm(15.7”)
500mm(19.7”)
-90° to 90°
0° to 360°

1,200mm(47.2”)
700mm(27.6”)
500mm(19.7”)
-90° to 90°
0° to 360°
Communication Interface
Ethernet
USB

Standard
Standard

Standard
Standard

Standard
Standard
Machine Dimensions
Width
Depth
Height
Weight

1,000mm(39”)
1,500mm(59”)
2,440mm(96”)
1,600kg (3,500lbs.)

2,110mm(83”)
2,515mm(99”)
2,700mm(106”)
3,400kg (7,500lbs.)

2,570mm(101”)
3,700mm(146”)
3,020mm(119”)
5,750kg (12,650lbs.)
Facility Requirements
Electrical
Air Supply

480V +/- 5%, 21A
100PSI, 5 CFM clean dry air

480V +/- 5%, 29A
100PSI, 5CFM clean dry air

480V +/- 5%, 35A
100PSI, 5CFM clean dry air
Workpiece Probing
Tool Probing
Asphere Fabrication
Non-Rotational Correction
Freeform Raster Fabrication
Standard
Standard
Standard
Optional
Standard
Standard
Standard
Optional
Optional
Standard
Standard
Standard
Optional
Optional
